Inconel 625 Nickel Alloy

The Inconel 625 nickel alloy is a solid solution strengthening high temperature alloy with an addition of molybdenum and niobium that can stiffen the alloy’s matrix and thereby provide high strength.

With excellent resistance to corrosion and oxidation, Inconel alloy 625 can be perfectly used for superheat and severely corrosive environments. In addition to this, the high temperature alloy shows outstanding tensile and thermal-fatigue strength in the service temperatures ranging from cryogenic to 980℃, and good resistance to stress corrosion cracking in salt atmosphere.

Since these properties, our Inconel 625 nickel alloy earns wide acceptance in organic chemistry processing field where acid chloride catalyst is typically utilized, and can be used for digester and bleacher in paper industry.

Specifications
UNS W. Nr
N06625 2.4856
Chemical Compositions
Composition Ni Cr Mo Nb Fe Al Ti C Mn Si Co P S
Content (%) Min. Bal. 20 8 3.15
Max. 23 10 4.15 5 0.4 0.4 0.1 0.5 0.5 1 0.015 0.015
Mechanical Properties (Minimum value at 20℃)
Tensile Strength (σb/MPa) Yield Strength (σp0.2/MPa) Elongation (σ5/%)
760 345 30
Product Forms and Standards of Inconel 625 Nickel Alloy

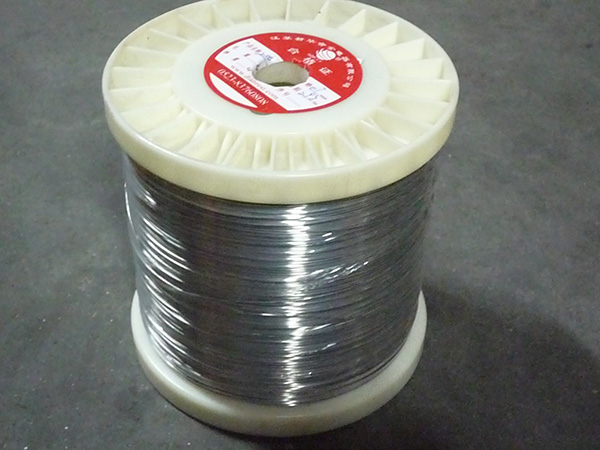

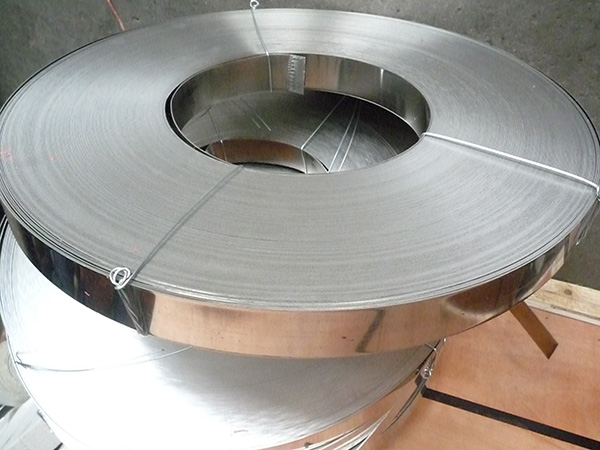

Bar Forging Sheet/Strip Wire Pipe Welding Wire
ASTM B446 ASTM B564 ASTM B443 ASTM B446 ASTM B444
ASTM B704
ASTM B705
AWS A5.14 ERNiCrMo-3
