Monel 400 Nickel Alloy

The Monel 400 nickel alloy, a solid solution alloy manufactured by XINHUA, can be hardened only by cold processing. It shows pretty high strength and toughness over a wide range of temperatures and good resistance to numerous corrosive environments.

In addition, Monel alloy 400 has excellent resistance to chloride-ion stress corrosion cracking, to neutral, alkaline and acid salts (especially the salts containing oxidizing acids), and to sulfuric acid and hydrofluoric acid. This nickel-copper alloy has been widely used in many fields, including marine engineering, chemical and hydrocarbon processing equipment, as well as oil industry.

Specifications
UNS W. Nr
N04400 2.4360
Chemical Compositions of Monel 400 Nickel Alloy
Composition Ni Cu Fe C Mn Si S
Content (%) Min. Bal. 28
Max. 34 2.5 0.3 2 0.5 0.024
Mechanical Properties (Minimum value at 20℃)
Tensile Strength (σb/MPa) Yield Strength (σp0.2/MPa) Elongation (σ5/%)
480 170 35
Product Forms and Standards

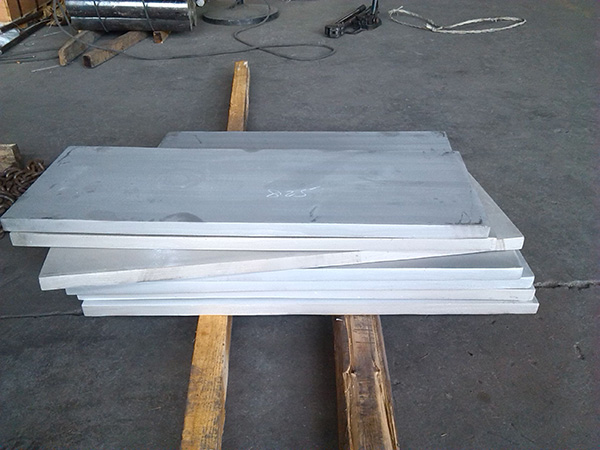

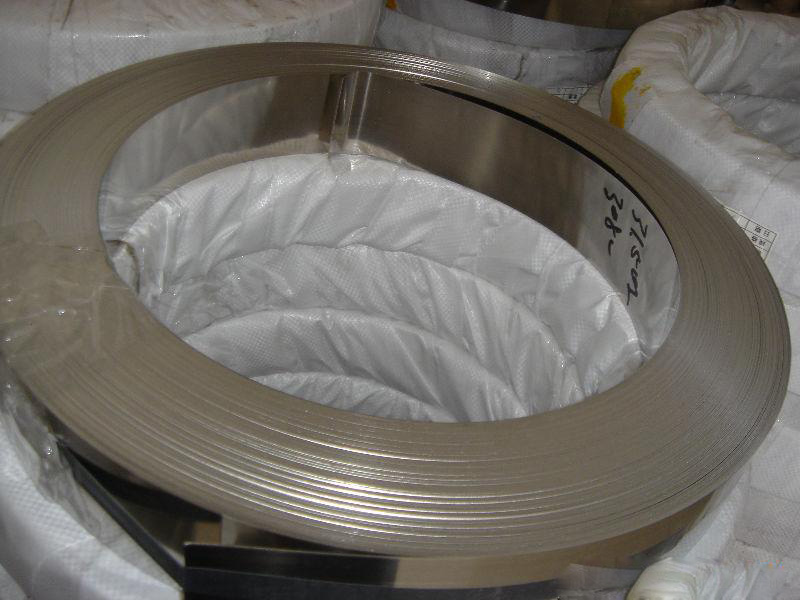

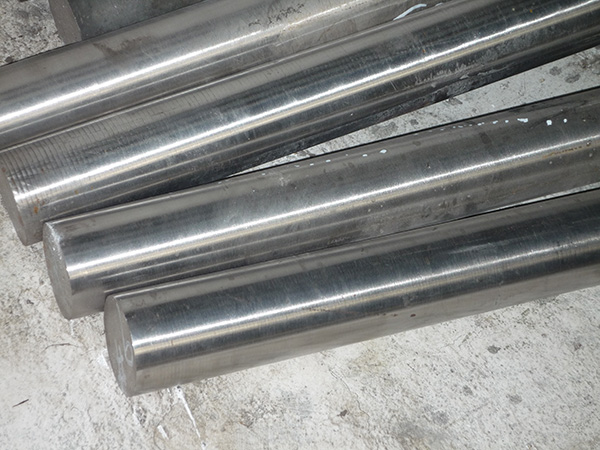

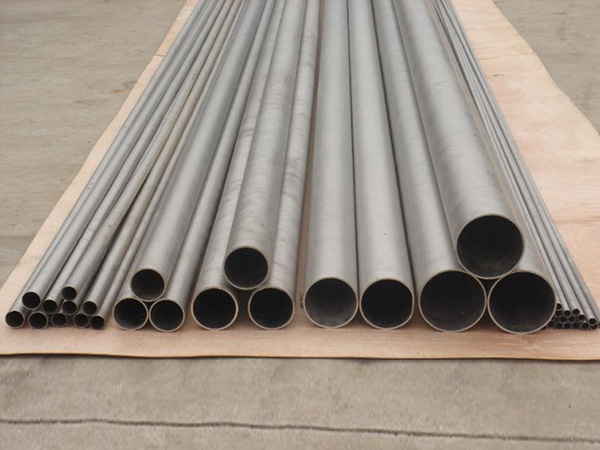

Bar Forging Sheet/Strip Wire Pipe
ASTM B164 ASTM B564 ASTM B127 ASTM B164 ASTM B165
ASTM B725
