Inconel 600 Nickel Alloy

The Inconel 600 nickel alloy, a solid solution strengthened alloy with nickel, chrome and iron as principal elements, is a standard engineering material suitable for heat resistant and corrosion resistant applications. Owing to excellent mechanical property and strength as well as great cold and hot processing and welding performance, this nickel-chromium-iron alloy obtains high praise and recognition in various industries.

The Inconel alloy 600 features high universality, enabling it to perform perfectly in various applications in which the temperature ranges from very low level to over 1095℃. In addition, this type of high temperature alloy comes with high strength and oxidation resistance that offer it satisfactory heat resistance and high plasticity under 700℃.

The Inconel 600 nickel alloy is widely used in the heater, distiller and condenser in fatty acid process, rolling furnace wall, furnace components and tray in heat treatment industry, and abietic acid processing equipment in paper pulp manufacturing.

Specifications
UNS W. Nr
N06600 2.4816
Chemical Compositions
Alloy 600 Ni Cr Fe C Mn Si Cu P S
Content (%) Min 72 14 6
Max 17 10 0.15 1 0.5 0.5 0.015 0.015
Mechanical Properties (Minimum value at 20℃)
Tensile Strength (σb/MPa) Yield Strength (σp0.2/MPa) Elongation (σ5/%)
585 240 30
Product Forms and Standards of Inconel 600 Nickel Alloy

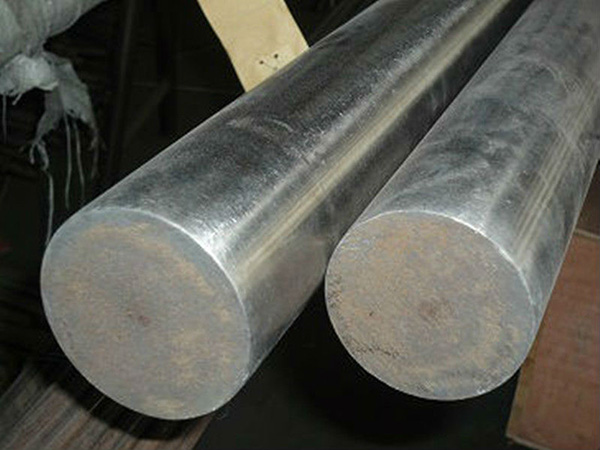

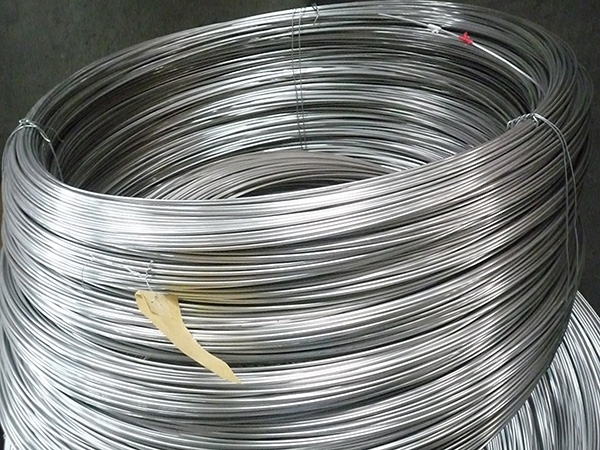

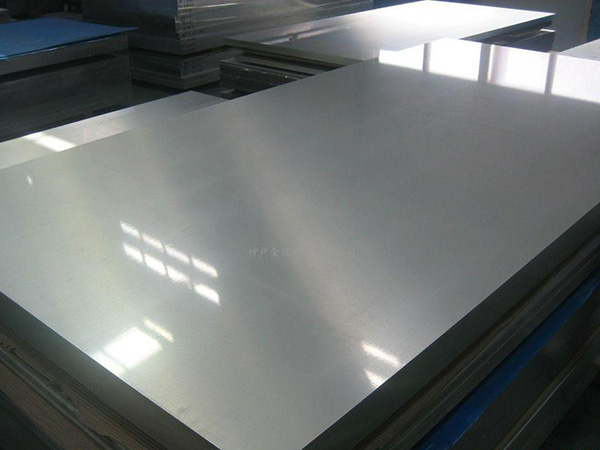

Bar Forging Sheet/Strip Wire Pipe
ASTM B166 ASTM B366 ASTM B168 ASTM B166 ASTM B167
ASTM B163
ASTM B516
ASTM B517
